Model Number Max Hole Dia. Twist Drill Dia Tapping Dia. Power Load Speeds Weight Special Features
MABasic 200
∅ 1-3/8"
1-3/8" 1/2" 8.20 Amp 450 RPM 27 lbs. Designed for continuous use.

Compact, lightweight and portable.
AutoMAB 350
∅ 1-1/2"
1-1/2" 10.50 Amp 450 RPM 33 lbs. Automatic feed - forward and automatic reverse
MABasic 400
∅ 1-5/8"
1-5/8" 5/8" 9.50 Amp 430/760 RPM 27 lbs. Professional-grade, two-speeds; 3/4" direct arbor
MABasic 450
∅ 1-5/8"
1-5/8" 3/4" 10.50 Amp 250/450 RPM 29 lbs. Professional-grade, two-speeds; MT2 - 3/4" direct arbor with automatic cooling
MABasic 850
∅ 3"
3" 1-1/4" 16.00 Amp 1: 110 RPM, 2: 175 RPM, 3: 245 RPM, 4: 385 RPM 53 lbs. 4-gear, powerful motor for demanding jobs; MT3 - 3/4" direct arbor with automatic cooling
MAB 150
∅ 1-1/2"
1-1/2" 9.25 Amp 400 RPM 24 lbs. Low-profile - horizontal motor mount for drilling in tight spaces
MAB 825 KTS
∅ 1-5/8"
1-5/8" 1" 1-1/8" 16.00 Amp 40-110 RPM, 65-175 RPM, 140-360 RPM, 220-600 RPM 99 lbs. Versatile machine with adjustable X and Y positioning for drilling, boring and slotting applications.
MAB 455
∅ 2"
2" 7/8" 10.50 Amp 250/450 RPM 29 lbs. High power with keyless quick-change chuck system. Optional swivel base model available.

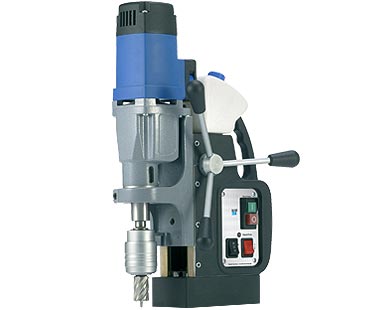

MAB 485
∅ 2"
2" 7/8" 15/16" 10.50 Amp 50-250 RPM, 100-450 RPM 29 lbs. Versatile for workshop and assembly applications. Optional swivel base model available.

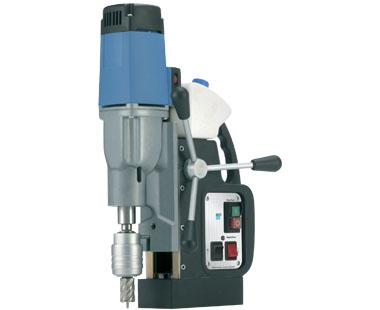

MAB 525
∅ 2-1/2"
2-1/2" 1" 15/16" 14.50 Amp 70-280 RPM, 180-580 RPM 35 lbs. High power, ideal for production use. Optional swivel base model available.
MAB 825
∅ 4"
4" 1-1/4" 1-1/8" 16.00 Amp 40-110 RPM, 65-175 RPM, 140-360 RPM, 220-600 RPM 55 lbs. Ideal for steel engineering, plant construction and more. Optional automatic feed model available.
MAB 845
∅ 4"
4" 1-1/4" 1-1/8" 16.00 Amp 40-110 RPM, 65-175 RPM, 140-360 RPM, 220-600 RPM 55 lbs. Includes swivel base: 30˚ movement left and right and 3/4" forward and backward.

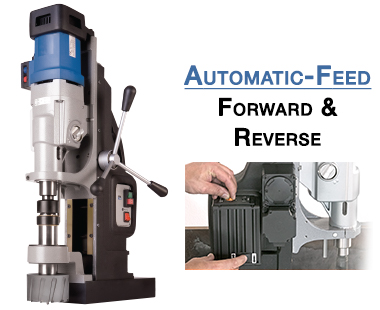

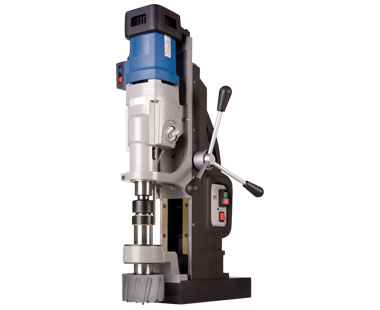

MAB 1300
∅ 5-1/8"
5-1/8" 1-3/4" 1-5/8" 20.00 Amp 30-80 RPM, 50-120 RPM, 130-350 RPM, 210-550 RPM 112 lbs. Large holes - up to 5-1/8" dia., tapping up to 1-5/8" dia.
CSU 32RL
∅ 1-1/4"
1-1/4" 1/2" 3/4" 8.20 Amp 450 RPM 24 lbs. Best power-to-weight performance in the industry.
CSU 50
∅ 2"
2" 7/8" 15/16" 10.50 Amp 1: 250 RPM, 2: 450 RPM 29 lbs. Lightweight, 2-speed, high-performance drill. Optional reversible model for tapping.
CSU 80AC
∅ 3-3/16"
3-3/16" 1-1/4" 15.00 Amp 1: 100 RPM, 2: 175 RPM, 3: 245 RPM, 4: 385 RPM 57 lbs. Powerful high-torque motor with multiple speeds.
CSU 100/3RL
∅ 4"
4" 1-1/4" 1-1/8" 16.00 Amp 40-140 RPM, 120-480 RPM 57 lbs. Powerful reversible motor for drilling and tapping. 2 gears with variable speed.
Pneumatic AB-4300
∅ 2-1/16"
2-1/16" 5/8" 1.60 HP 400 RPM 38 lbs. Pneumatic power for hazardous environments - ATEX Classified
Hydraulic HB 4400
∅ 2-1/16"
2-1/16" 1/2" 9.25 Amp 430/760 RPM 29 lbs. High speed and two gears for cutting and twist drilling

Not finding what you are looking for? Please call 1-800-700-5919 (US/Canada) or +1-203-853-9522 (International) and a member of our staff will be happy to assist you.

Filter by:
Sub title
1-1/2"
Hole Dia.
1-1/2"
Power type
Electric
Power
10.50
Load Speeds
450 RPM
Weight
33 lbs.
Special Features
Automatic feed - forward and automatic reverse
Sub title
3"
Hole Dia.
3"
Twist Drill Dia
1-1/4"
Power type
Electric
Power
16.00
Weight
53 lbs.
Special Features
4-gear, powerful motor for demanding jobs; MT3 - 3/4" direct arbor with automatic cooling
Sub title
1-3/8"
Hole Dia.
1-3/8"
Twist Drill Dia
1/2"
Power type
Electric
Power
8.20
Load Speeds
450 RPM
Weight
27 lbs.
Special Features
Designed for continuous use.

Compact, lightweight and portable.
Sub title
1-5/8"
Hole Dia.
1-5/8"
Twist Drill Dia
3/4"
Power type
Electric
Power
10.50
Load Speeds
250/450 RPM
Weight
29 lbs.
Special Features
Professional-grade, two-speeds; MT2 - 3/4" direct arbor with automatic cooling
Sub title
1-5/8"
Hole Dia.
1-5/8"
Twist Drill Dia
5/8"
Power type
Electric
Power
9.50
Load Speeds
430/760 RPM
Weight
27 lbs.
Special Features
Professional-grade, two-speeds; 3/4" direct arbor
Sub title
1-5/8"
Hole Dia.
1-5/8"
Twist Drill Dia
1"
Tapping Dia.
1-1/8"
Power type
Electric
Power
16.00
Weight
99 lbs.
Special Features
Versatile machine with adjustable X and Y positioning for drilling, boring and slotting applications.
Sub title
4"
Hole Dia.
4"
Twist Drill Dia
1-1/4"
Tapping Dia.
1-1/8"
Power type
Electric
Power
16.00
Weight
57 lbs.
Special Features
Powerful reversible motor for drilling and tapping. 2 gears with variable speed.
Sub title
3-3/16"
Hole Dia.
3-3/16"
Twist Drill Dia
1-1/4"
Power type
Electric
Power
15.00
Weight
57 lbs.
Special Features
Powerful high-torque motor with multiple speeds.
Sub title
2"
Hole Dia.
2"
Twist Drill Dia
7/8"
Tapping Dia.
15/16"
Power type
Electric
Power
10.50
Weight
29 lbs.
Special Features
Lightweight, 2-speed, high-performance drill. Optional reversible model for tapping.
Sub title
1-1/4"
Hole Dia.
1-1/4"
Twist Drill Dia
1/2"
Tapping Dia.
3/4"
Power type
Electric
Power
8.20
Load Speeds
450 RPM
Weight
24 lbs.
Special Features
Best power-to-weight performance in the industry.

Not finding what you are looking for? Please call 1-800-700-5919 (US/Canada) or +1-203-853-9522 (International) and a member of our staff will be happy to assist you.
