Needles for Needle Scalers

CS Unitec's Trelawny™ needles last 10x longer than standard needles. Save time and money with fewer needle changes and less downtime.

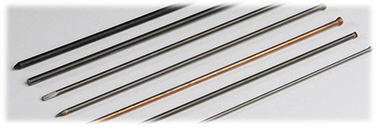

All of CS Unitec's Needle Scalers are delivered from stock complete with 180mm long x 3mm diameter chisel tipped high performance needles. Other needle holders are available as accessories for use with 2mm and 4mm diameter needles. We also offer spark resistant needles for use in potentially hazardous areas and Ex zones, as well as stainless steel needles for use in humid areas - such as applications in the food processing industry - where corrosion is a concern.

Standard pack set is one carton of 6 sets. Some models are packed as an individual set in a box. Boxes of 100 qty. needles in a durable, reusable plastic container are available, as well as larger quantities.


Conversions:
  2mm = 0.08"
  3mm = 0.12"
  4mm = 0.16"
  127mm = 5"
  180mm = 7"



Chisel Tip
These needles will clean the same materials as a pointed tip, but will leave light surface marking.
SizeDescriptionPart #
3mm
3mm
3mm
3mm
3mm
6 sets of 12 needles
6 sets of 19 needles
6 sets of 28 needles
Box of 100 needles
Box of 1000 needles
413.2112
413.2119
413.2128
453.2110
443.2107

Flat Tip
Flat-tipped needles will reduce marking on metal surfaces and can give a polishing effect. For use on thin-gauge metals and any surface where a light treatment is required.

2mm needles used on a welded joint produce a similar effect to shot peening, reducing stress in the weld.

Size DescriptionPart #
2mm
2mm
2mm
2mm
2mm
3mm
3mm
3mm
3mm
4mm
4mm
4mm
4mm
3mm
3mm
6 sets of 29 needles
6 sets of 51 needles
6 sets of 65 needles
Box of 100 needles
Box of 2000 needles
6 sets of 19 needles
6 sets of 28 needles
Box of 100 needles
Box of 1000 needles, 7" long (180mm)
6 sets of 19 needles
6 sets of 35 needles
Box of 50 needles
Box of 500 needles
Box of 1000 needles, 5" long (127mm)
19 needles, 5" long (127mm)
412.1129
412.1151
412.1165
452.1110
442.1107
413.1119
413.1128
453.1110
443.1107
414.1119
414.1135
454.1105
444.1107
443.1105
443.1115

Pointed Tip
Sharpened to a conical point, these are the most effective in breaking through very hard scale on materials where some surface indentation is permissible, or where a roughening or keying of the surface is desirable.
SizeDescriptionPart #
3mm
3mm
3mm
3mm
3mm
4mm
4mm
4mm
4mm
6 sets of 19 needles
6 sets of 28 needles
6 sets of 49 needles
Box of 100 needles
Box of 1000 needles
6 sets of 19 needles
6 sets of 35 needles
Box of 50 needles
Box of 500 needles
413.3119
413.3128
413.3149
453.3110
443.3107
414.3119
414.3135
454.3105
444.3107

Spark-Resistant Copper Beryllium
Available in 3mm flat tip only; for use in potentially hazardous areas.
SizeDescriptionPart #
3mm
3mm
3mm
3mm
3mm
3mm
Box of 12 needles
Box of 19 needles
Box of 28 needles
Box of 49 needles
Box of 100 needles
Box of 500 needles
403.1312
403.1319
403.1328
403.1349
453.1310
443.1307

Stainless Steel
Available in 3mm flat-tip form only, to be used in applications such as refurbishment of food processing machinery or areas of high humidity where the corrosive effect on needles would be prohibitive.

Used on decorative concrete surfaces where contamination of the surface from carbon steel needle is undesirable.

SizeDescriptionPart #
3mm
3mm
Box of 100 needles
Box of 500 needles
453.1207
443.1207
