Professional Electric Linear Finishing System

Portable Surface Finishing on Stainless Steel, Aluminum and High-Grade Metals

  • PTX Eco Smart Linear Surface Finishing Machine
  • PTX Eco Smart Linear Grinder/Polisher
  • PTX Eco smart surface finishing
  • PTX Eco smart Abrasive Wheels
  • PTX Eco Smart Linear Surface Finishing Machine
  • PTX Eco Smart Linear Grinder/Polisher
  • PTX Eco smart surface finishing
  • PTX Eco smart Abrasive Wheels

PTX Eco Smart Kits available:

• Professional Kit for Metalworking
• Basic Kit for Metal
• Woodworking Kit
See table below for more information.

A wide selection of Linear Finishing Abrasives is available for the PTX Eco Smart. The lack of a core insert means that the abrasives are lighter, easier to use and less expensive.

The professional linear surface finisher for flat, curved or pipe applications. Create or match linear finishes including #3, #4 appliance, #6 satin and #8 reflective. Uniform finishes with no shadows or streaks.

A revolution in linear grinding! Simply slide on the abrasive wheels and they secure themselves automatically when the machine turns. Fast and easy!

PTX Eco Smart is a multi-functional grinding and polishing system for flat surfaces and open or closed pipe constructions. It grinds from coarse to very fine finishes and burnishes to a high-gloss finish. It enhances stainless steel, steel and nonferrous metals including aluminum, brass, bronze and copper, as well as wood and rigid plastic.


  • Specs
  • PTX Basic Kit: Metal
  • PTX Pro Kit: Metal
  • PTX Kit: Woodworking
  • Accessories
PTX Eco Smart - Electric Specifications
Part No. PTX Eco Smart
Power 15 Amp (1710 Watts)

110 Volt / 60 Hz

(Also avail: 230 V / 50 Hz)
Speed Control Dial Variable speed control from 1000 to 3800 RPM with tachogenerator for constant power, even under load
Wheel Width 2", 4" or 6" wide abrasives
Wheel Diameter Up to 4-1/2"
Weight 7.25 lbs
Standard Equipment 4" Interleaf (combi) wheel - P/N 47312

Shaft Adapter - P/N 42004

PTX Basic Kit for Metal
Part No. 47003A Basic set for coarse finishing to #4 finish on flat surfaces and pipes.
  • 1 PTX Eco Smart machine
  • 1 Carrying Case (P/N 40008)
  • 1 60 grit flap wheel, 4" x 4-1/8" (P/N 47212)
  • 1 80 grit interleaf (combi) wheel, 4" x 4-1/8" (P/N 47312)
  • 1 Expansion roller, 3-1/2" x 4" (P/N 47005)
  • 1 Medium fleece (Nonwoven) sleeve, 3-1/2" x 4" (P/N 42011)
  • 1 Belt driving roller (P/N 47006)
  • 1 80 grit grinding belt, 1.2" x 24" (P/N 49080)
  • 1 Medium fleece (Nonwoven) belt, 1.2" x 26" (P/N 49002)
  • 1 40 grit grinding belt, 3.6" x 4" (P/N 42040)
  • 1 60 grit grinding belt, 3.6" x 4" (P/N 42060)
  • 1 80 grit grinding belt, 3.6" x 4" (P/N 42080)
  • 1 120 grit grinding belt, 3.6" x 4" (P/N 42120)

PTX Professional Kit for Metal
Part No. 47004A This set comes in a strong, impact-resistant transport case and contains everything you need for shadow-free industrial finishes. Match or create any finish up to a mirror finish on metals. Prevent marks and fingerprints with newly developed cleaning products and preservatives.
  • 1 PTX Eco Smart machine
  • 1 Professional Case (P/N 80002)
  • 1 40 grit flap wheel, 4" x 4-1/8" (P/N 47211)
  • 1 80 grit interleaf (combi) wheel, 4" x 4-1/8" (P/N 47312)
  • 1 Expansion roller, 3-1/2" x 4" (P/N 47005)
  • 2 80 grit grinding belt sleeve, 3-1/2" x 4" (P/N 42080)
  • 1 Fine fleece (Nonwoven) sleeve, 3-1/2" x 4" (P/N 42012)
  • 1 Medium fleece (Nonwoven) sleeve, 3-1/2" x 4" (P/N 42011)
  • 2 A45 TZ Pyramid sleeves, 3-1/2" x 4" (P/N 42245)
  • 2 A30 TZ Pyramid sleeves, 3-1/2" x 4" (P/N 42230)
  • 2 A16 TZ Pyramid sleeves, 3-1/2" x 4" (P/N 42216)
  • 2 A06 TZ Pyramid sleeves, 3-1/2" x 4" (P/N 42206)
  • 3 SuperPolish sleeves, 3-1/2" x 4" (P/N 42013N)
  • 1 Belt driving roller (P/N 47006)
  • 2 80 grit grinding belts, 1.2" x 24" (P/N 49080)
  • 1 Medium fleece (Nonwoven) belt, 1.2" x 26" (P/N 49002)
  • 2 A45 TZ Pyramid belts, 1.2" x 24" (P/N 49345)
  • 2 A30 TZ Pyramid belts, 1.2" x 24" (P/N 49330)
  • 2 A16 TZ Pyramid belts, 1.2" x 24" (P/N 49316)
  • 2 A06 TZ Pyramid belts, 1.2" x 24" (P/N 49306)
  • 3 SuperPolish belts, 1.2" x 26" (P/N 49004N)
  • 1 Mini high gloss polishing paste, pink (P/N 40015T)
  • 2 Mini polishing pastes, white and blue [P/N 40013 (white) P/N 40014 (blue)]
  • 1 PTX lime scatter can (P/N 40020A)
  • 5 Microfiber cloths (P/N 40031)
  • 1 Brilliance clean spray bottle (P/N 40050)
  • 1 INOX-protect spray bottle (P/N 40040)

PTX Kit for Woodworking
Part No. 40004-3A The complete set for treating wooden surfaces. Strong transport case with PTX Eco Smart and a range of brush wheels for various wood structures. Suction cover for extracting grinding dust particles.
  • 1 PTX Eco Smart machine
  • 1 Carrying Case (P/N 40008)
  • 1 Suction cover (P/N 40005)
  • 1 Spacer ring (P/N 40007)
  • 1 PTX stranded wire wheel (P/N 46301)
  • 1 Bristle wheel (P/N 46101)
  • 1 Fiber wheel (P/N 46400)

  Part No. Description
42004 Hollow-core Shaft Adapter
47005 Expansion Roller – for use with belt sleeves
47006 Grinding Belt Roller – for use with belts for pipe constructions
52004-3 Quick-Lock Power Cord
80002 Professional Case

Dimensions: 20-1/4" L x 15-1/8" W x 8-1/4" H


40008 Basic Case

Dimensions: 19.5" L x 9" W x 8" H

PTX Eco Smart accessories
A wide selection of Linear Finishing Abrasives is available for the PTX Eco Smart. The lack of a core insert means that the abrasives are lighter, easier to use and less expensive. We do continue to carry abrasives with core insert adapters for older LP 1503 VR model grinders and other machines CS Unitec offers polishing and maintenance products including pre-grinding and polishing compounds, mirror-finish creams, cleaners and protective sprays for finished metal surfaces.


Features:

Balanced straight-line handling, high torque and electronic speed control enable the PTX to easily produce matte, satin and other decorative surfaces up to a mirror finish. Besides fine finishing, the PTX is ideal for coarse grinding to remove welds, deep scratches, oxidation, rust and paint.


surface finishing

PTX Eco Smart features a newly developed abrasive mounting system (left). This unique system allows grinding and polishing wheels to be changed in seconds, without tools or hardware. Simply slide the wheels and accessories onto the finned, rigid rubber shaft. They secure themselves automatically when the machine turns. (Note: Shaft supplied with keyway and finned shaft adapter.)

The finned shaft design ensures absolutely no vibrations during operation and 100% concentricity. The main savings compared to other linear grinders comes from the cost of abrasives. The elimination of an internal core means the abrasives wheels can be produced less expensively, while delivering the same high-quality results.

CS Unitec can provide you with complete starter kits (see tabs below) and an extensive range of abrasive tools (patent pending) and accessories to cover almost every conceivable surface finishing application.


surface finishing
surface finishing
surface finishing

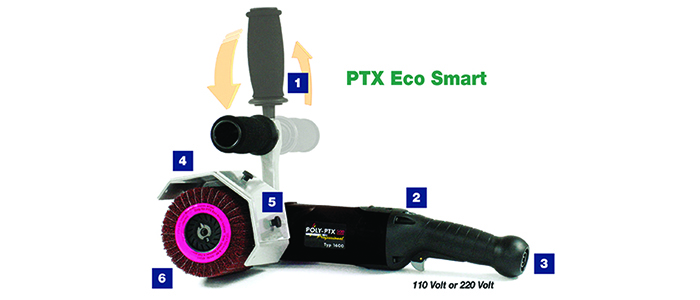

1. Adjustable handle suitable for right and left-handed users. Anti-vibration handle for comfortable, fatigue-free working. 2. Variable speed control from 1000 to 3800 RPM with constant power. 3. QUICK-LOCK 13 ft. cable for fast, easy replacement. Part Number 52004-3
surface finishing
surface finishing
4. Infinitely adjustable cover guard with securing points for the extraction cover. Part Number: 40005 5. Extended polycarbonate cover guard for grinding wheel widths up to 6". Part Number: 52706 6. Hollow core shaft adapter for roller wheel widths up to 6" and vibration-free operation. Part Number: 42004
