ETN 2001 P

Easy-to-use for wet/dry drilling of holes up to 4" dia. in concrete or stone

  • ETN 2001 P Diamond Core Drill
  • ETN 2001 P Diamond Core Drill
  • ETN 2001 P Diamond Core Drill Application
  • ETN 2001 P Diamond Core Drill
  • ETN 2001 P Diamond Core Drill
  • ETN 2001 P Diamond Core Drill Application

High torque heavy-duty wet and dry diamond core drill

  • Mechanical Slip Clutch Design
  • Load Speeds: 0-800/0-1570 RPM
  • Ideal for hand-held drilling of brick, block, stone, concrete, reinforced concrete and asphalt
  • Fast drilling of blind anchor holes or thru holes
  • Hand-held drilling up to 3" dia., rig-mounted up to 4" dia.
Max. Hole
Dia.
Speeds
Use
Weight
Power
Diamond Core Drill Bit
Core Drill Gears
Core Drill Weight
Core Drill Power
Ø 4"
0-800 RPM
0-1570 RPM
Hand-Held
or Rig-Mounted
15 lbs.
15 Amp / 110 V

Ideal for plumbing, heating and ventilation construction, civil engineering, landscape construction and more

Use hand-held or rig mounted. Two-speed gearbox provides the optimum RPM for hole sizes up to 4-inch diameter. Electronic torque limitation and speed control guarantee constant RPM even under load. This machine offers wet and dry diamond core drilling with the same tool. Replacing the water seal is easy and can be done on the job, which eliminates downtime and expensive repairs.

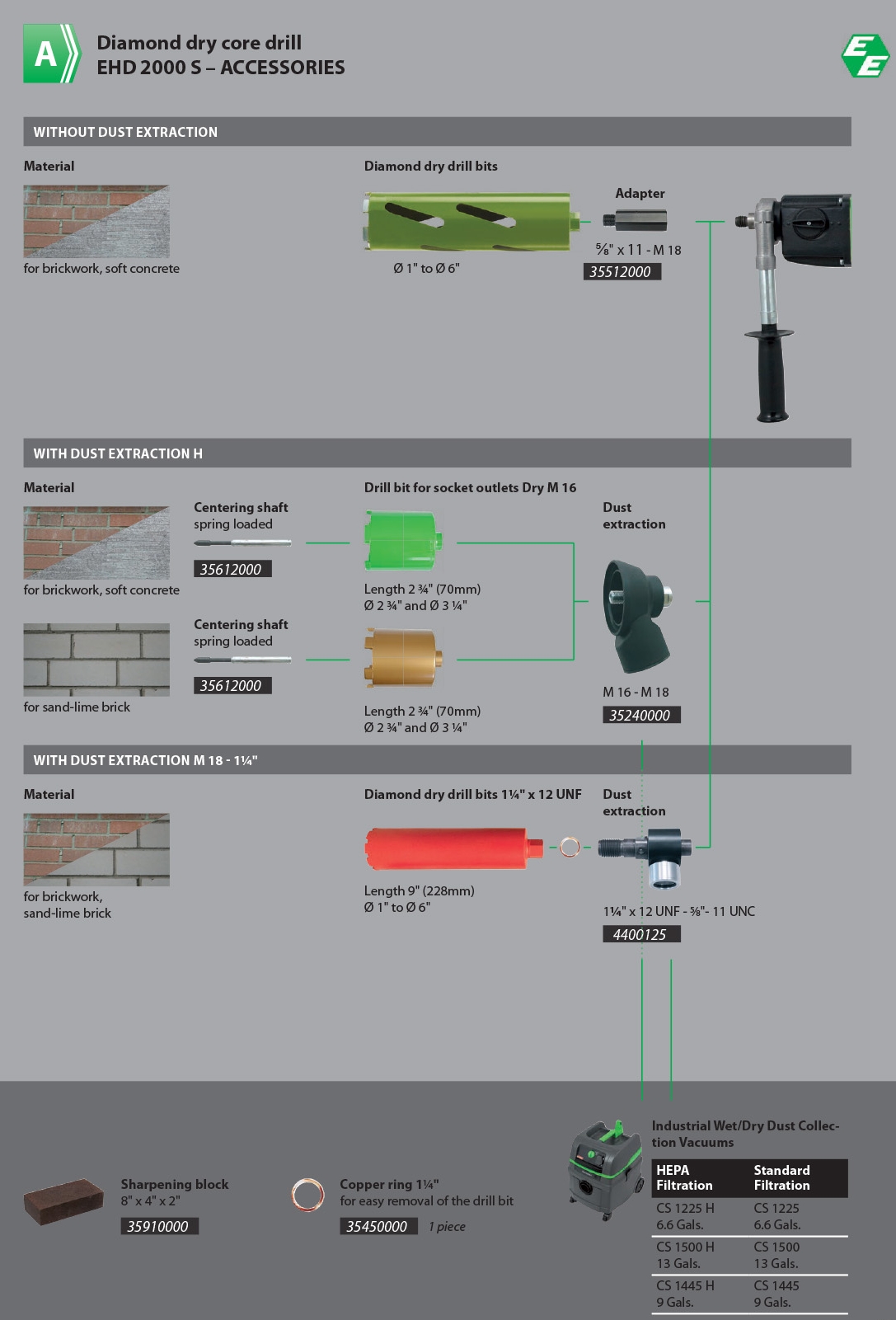

Optional accessories include anchor stand, (with or without vacuum pump), centering aid, portable water tank, water collection kit, G 1/2" Adapter and Unicore Diamond Core Bits. Click here for dust extraction vacuums.


Use:

  • Dry drilling in sand-lime brick, brickwork, clinker, brick and other abrasive materials
  • Wet drilling in reinforced concrete, natural stone and asphalt
  • Plumbing, heating and ventilation construction, civil engineering, landscape construction
5/8" and 1-1/4" Adapters Included
External water supply - easy to service
Gardena Connector Small
Gardena Hose Connector

  • Features
  • ETN 2001 P
  • ETN 2001 PSA
  • ETN 2001 PSV
  • Video
  • Accessories
  • Mechanical safety slip clutch
  • Thermal overload switch
  • Water swivel collar
  • 2-speed oil bath gearbox – optimal lubrication
  • Water supply on the gearbox extension
  • Temperature control and GFCI overcurrent cut-off, optical overload indication
  • Adjustable side handle
  • Metal carrying case
  • 5/8" x 11 UNC and 1-1/4 x 7 UNC connecting threads
Power input15 Amp
Rated Voltage110 V
Load Speeds (RPM)0-800 / 0-1570
No-Load Speed (RPM)1000 / 2300
Drilling DiameterFree hand - up to 3-1/4"
With drill rig - up to 4"
Spindle ConnectionM18 male + 5/8" x 11 UNC + 1-1/4" x 7 UNC
Collar Diameter52mm
Weight15 lbs.
SuppliedIn a carrying case with 5/8" and 1-1/4" adapters and gardena hose connector
Power input15 Amp
Rated Voltage110 V
Load Speeds (RPM)0-800 / 0-1570
No-Load Speed (RPM)1000 / 2300
Drilling DiameterFree hand - up to 3-1/4"
With drill rig - up to 4"
Spindle ConnectionM18 male + 5/8" x 11 UNC + 1-1/4" x 7 UNC
Collar Diameter52mm
Weight36 lbs.
SuppliedETN 2001 P, Anchor Stand BST 104/60 V and 53mm motor mount
Power input15 Amp
Rated Voltage110 V
Load Speeds (RPM)0-800 / 0-1570
No-Load Speed (RPM)1000 / 2300
Drilling DiameterFree hand - up to 3-1/4"
With drill rig - up to 4"
Spindle ConnectionM18 male + 5/8" x 11 UNC + 1-1/4" x 7 UNC
Collar Diameter52mm
Weight44 lbs.
SuppliedETN 2001 P, Anchor Stand BST 104/60 V, vacuum pump and fittings
