Filter by:
| Model Number | Power | Load Speeds | Cutting Type | Max Hole Dia. | Drill Stand | Special Features |
|---|---|---|---|---|---|---|
| Mini Core Drill, 3/4" dia., variable speed ∅ 3/4"  | Electric 6.00 Amp | 0-8000 RPM | Wet | 3/4" | N/A | Ideal for tile, natural stone, porcelain, glass and concrete. Model No. END 712 P. |
| Core Drill, 2-5/8" dia., variable speed ∅ 2-5/8"  | Electric 13.00 Amp | 1800-4400 RPM | Wet | 2-5/8" | BST 50 V or BST 90 | Ideal for fast drilling of anchor and thru holes in natural stone, tiles, ceramic, porcelain, stoneware, glass and reinforced concrete. Model No. END 1550 P. |
| Core Drill, 4" dia., 2-speed variable ∅ 4"  | Electric 15.00 Amp | 0-800/0-1570 RPM | Wet/Dry | 4" | BST 104/60 V or BST 104/60 V with vacuum pump | Ideal for plumbing, heating and ventilation construction, civil engineering, landscape construction and more. Model No. ETN 2001 P. |
| Core Drill, 6" dia., 3-speed ∅ 6"  | Electric 15.00 Amp | 600/1300/2800 RPM | Wet | 6" | BST 104/60 V or BST 104/60 V with vacuum pump | The Standard of the Industry - A lightweight, robust system for Professional Core Drilling. Model No. END 130/3.1 PO. |

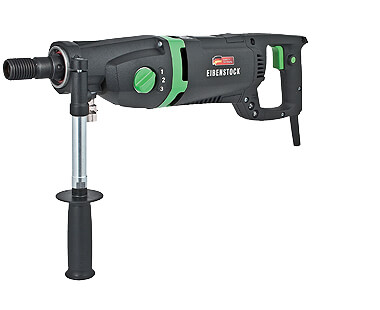

| Core Drill, 8" dia., 3-speed variable ∅ 8" in Brickwork  | Electric 15.00 Amp | 0-510/0-1150/0-2500 RPM | Wet/Dry | 6-3/8" | BST 162 V or BST 162 V with vacuum pump | 19.5 Amps, 3 mechanical speeds and slip clutch - Ideal for professional core drilling up to 6-3/8" diameter in concrete. Model No. ETN 162/3 P. |
| Core Drill, Rig, 6" dia., 450 RPM ∅ 6"  | Electric 18.00 Amp | 450 RPM | Wet | 6" | Included | The compact Diamond Core Drilling rig with 18 Amp motor for holes up to 6" dia. in concrete, reinforced concrete, stone and asphalt. Model No. DBE 160. |
| Core Drill, 14" dia., 3-speed ∅ 14"  | Electric 20.00 Amp | 230/500/1030 RPM | Wet | 14" | BST 300 or BST 300 V with vacuum pump | Industry's most portable rig - lightweight combination of drill stand and motor only 77 lbs. Model No. EBM 352/3 P Core Motor. |
| Core Drill, 18" dia., 3-speed ∅ 18"  | Electric 30.00 Amp | 190/400/840 RPM | Wet | 18" | PLB 450 Anchor Stand | 3-speed, 30 AMP motor for the drilling professional - the robust, powerful Diamond Core Drilling Motor and Steel Stand for holes up to 18" dia. - only 85 lbs. Model No. PLD 450 B Core Motor. |
| Core Drill, Air, 6" max. dia. ∅ 6"  | Pneumatic 3.80 HP | 300/700/1350 RPM | Wet | 6" | BST 162V Anchor/Vacuum Stand and Vacuum Pump | 3.8 HP - Ideal for drilling holes in walls, floors, ceilings, refractory brick and for all concrete anchoring systems. Model Nos. 2 1333 0010 and 2 1335 0010. |
| Core Drill, Air, 12" max. dia. ∅ 12"  | Pneumatic 3.80 HP | 300/700/1350 RPM | Wet | 12" | BST 300 Anchor Stand or BST 300 V Vacuum Stand and Vacuum Pump | Rig mounted - Ideal for drilling holes in walls, floors, ceilings, refractory brick and for all concrete anchoring systems. Model no. 2 1328 0010. |
| Core Drill, Hydraulic, 6" max. dia. ∅ 6"  | Hydraulic 3.60 HP | 380/900/1800 RPM | Wet | 6" | BST 162V Anchor/Vacuum Stand and Vacuum Pump | Industry's first 3-speed hand-held Hydraulic Diamond Core Drill |
| Core Drill, Hydraulic, 12" max. dia. ∅ 12"  | Hydraulic 4.20 HP | 380/900/1800 RPM | Wet | 12" | BST 300 Anchor Stand or BST 300 V Vacuum Stand and Vacuum Pump | Industry's first 3-speed hand-held Hydraulic Diamond Core Drill |
Not finding what you are looking for? Please call 1-800-700-5919 (US/Canada) or +1-203-853-9522 (International) and a member of our staff will be happy to assist you.
Filter by:
Power type
Pneumatic Power
3.80 CFM
123.00 PSI
90.00 Special Features
Rig mounted - Ideal for drilling holes in walls, floors, ceilings, refractory brick and for all concrete anchoring systems. Model no. 2 1328 0010. Load Speeds
300/700/1350 RPM Cutting Type
Wet Max Hole Dia.
12" Sub title
12"
Power type
Pneumatic Power
3.80 CFM
123.00 PSI
90.00 Special Features
3.8 HP - Ideal for drilling holes in walls, floors, ceilings, refractory brick and for all concrete anchoring systems. Model Nos. 2 1333 0010 and 2 1335 0010. Load Speeds
300/700/1350 RPM Cutting Type
Wet Max Hole Dia.
6" Sub title
6" Drill stand
BST 162V Anchor/Vacuum Stand and Vacuum Pump
Power type
Hydraulic Power
4.20 GPM
6.00 PSI
2 000.00 Special Features
Industry's first 3-speed hand-held Hydraulic Diamond Core Drill Load Speeds
380/900/1800 RPM Cutting Type
Wet Max Hole Dia.
12" Sub title
12"
Power type
Hydraulic Power
3.60 GPM
6.00 PSI
2 000.00 Special Features
Industry's first 3-speed hand-held Hydraulic Diamond Core Drill Load Speeds
380/900/1800 RPM Cutting Type
Wet Max Hole Dia.
6" Sub title
6" Drill stand
BST 162V Anchor/Vacuum Stand and Vacuum Pump
Power type
Electric Power
30.00 Special Features
3-speed, 30 AMP motor for the drilling professional - the robust, powerful Diamond Core Drilling Motor and Steel Stand for holes up to 18" dia. - only 85 lbs. Model No. PLD 450 B Core Motor. Load Speeds
190/400/840 RPM Cutting Type
Wet Max Hole Dia.
18" Sub title
18" Drill stand
PLB 450 Anchor Stand
Power type
Electric Power
20.00 Special Features
Industry's most portable rig - lightweight combination of drill stand and motor only 77 lbs. Model No. EBM 352/3 P Core Motor. Load Speeds
230/500/1030 RPM Cutting Type
Wet Max Hole Dia.
14" Sub title
14" Drill stand
BST 300 or BST 300 V with vacuum pump
Power type
Electric Power
15.00 Special Features
19.5 Amps, 3 mechanical speeds and slip clutch - Ideal for professional core drilling up to 6-3/8" diameter in concrete. Model No. ETN 162/3 P. Load Speeds
0-510/0-1150/0-2500 RPM Cutting Type
Wet/Dry Max Hole Dia.
6-3/8" Sub title
8" in Brickwork Drill stand
BST 162 V or BST 162 V with vacuum pump
Power type
Electric Power
15.00 Special Features
The Standard of the Industry - A lightweight, robust system for Professional Core Drilling. Model No. END 130/3.1 PO. Load Speeds
600/1300/2800 RPM Cutting Type
Wet Max Hole Dia.
6" Sub title
6" Drill stand
BST 104/60 V or BST 104/60 V with vacuum pump
Power type
Electric Power
15.00 Special Features
Ideal for plumbing, heating and ventilation construction, civil engineering, landscape construction and more. Model No. ETN 2001 P. Load Speeds
0-800/0-1570 RPM Cutting Type
Wet/Dry Max Hole Dia.
4" Sub title
4" Drill stand
BST 104/60 V or BST 104/60 V with vacuum pumpNot finding what you are looking for? Please call 1-800-700-5919 (US/Canada) or +1-203-853-9522 (International) and a member of our staff will be happy to assist you.
