MULTI-MAX Stationary Multipurpose Finishing Machine

Deburring, Trimming, Grinding and Brushing

  • MULTI-MAX
  • MULTI-MAX
  • MULTI-MAX
  • MULTI-MAX
  • MULTI-MAX
  • MULTI-MAX
  • MULTI-MAX
  • MULTI-MAX
  • MULTI-MAX
  • MULTI-MAX
  • MULTI-MAX
  • MULTI-MAX
  • MULTI-MAX
  • MULTI-MAX

Stationary multipurpose grinder



  • Powerful 3-Phase, 750 watts AC motor, 220 volt
  • 2,800 RPM for grinding, blending and surface finishing applications
  • Two shaft mountings - one for linear, the other for rotary abrasive
  • Optional flexible shaft attachment (Part No. 10015)
  • Fast deburring, trimming, grinding, brushing, and more
  • Transparent, hinged grinding guard
  • Roller support for more accurate work
  • This versatile bench grinder uses all PTX abrasive wheels and discs with 5/8" - 11 UNC threads or 7/8" arbor.
  • Two shaft mountings. Uses grinding discs with 5/8"-11 UNC or 7/8" mounting and abrasive grinding wheels for longitudinal surface finishers.
  • Uses Poly-PTX grinding wheels for longitudinal grinding, satin finishing, etc.
  • Uses grinding discs for plain grinding, fine grinding, etc.
  • Uses FIX HOOK & LOOP system for plain grinding, fine grinding, and more
  • Adjustable support rail with safety hood for grinding discs up to 7".
  • Drive motor can be used with the flexible shaft for grinding in narrow and awkward spots
  • For a safe upright working position, use with the MULTI-MAX machine stand. (P/N 30420)
  • Specifications
  • Accessories
  • Features
  • Standard Equipment
  • Abrasives
MULTI-MAX Specifications
Part No.30402
Power220 - 240V, 3-Phase
Speed2,800 RPM
Abrasive Diameters4" to 7"
Disc Mounting5/8"-11 UNC or 7/8" arbor
Wheel MountingHollow core or Keyway
Weight5.2 lbs.
 Part No.Description
36060

36080

36120
Flat flap disc, 60 grit

Flat flap disc, 80 grit

Flat flap disc, 120 grit
30420Machine Stand

Dimensions (L x W x H)

15-3/4" x 13-3/4" x 32-5/8"

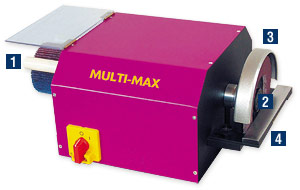

MM Callouts
  1. Shaft mounting for all abrasives from the PTX ECO SMART system.
  2. 5/8" - 11 UNC spindle thread for grinding discs or a 7/8" arbor.
  3. Uses the FIX HOOK & LOOP SYSTEM
  4. Compatible with the new flexible shaft attachment.
Side Abrasives
Side Flexshaft
Uses all PTX abrasive wheelsCompatible with the flexible drive shaft.

MULTI-MAX Standard Equipment:

  • Multi-Max Tool, 220V
  • PTX Flap Wheel, 80 grit (2)
  • PTX Interleaf, 180 grit (1)
  • Mini polishing pastes, white (P/N 40013) and blue (P/N 40014)
  • Spacer ring set (1)
  • Flat flap disc, 80 grit (1 P/N 36080)
  • FIX backing pad (1 P/N 80115UF)
  • FIX Zirconium discs, 40, 60, 80, 120 grit (1 ea.)
  • FIX TZ Pyramid discs, 400, 600, 1200 grit (1 ea.)
  • FIX SuperPolish disc (1 P/N 80715N)
fix hook loop
hollow core grinding wheels
Click here for FIX Hook & Loop DiscsClick here for Hollow-Core Abrasives
